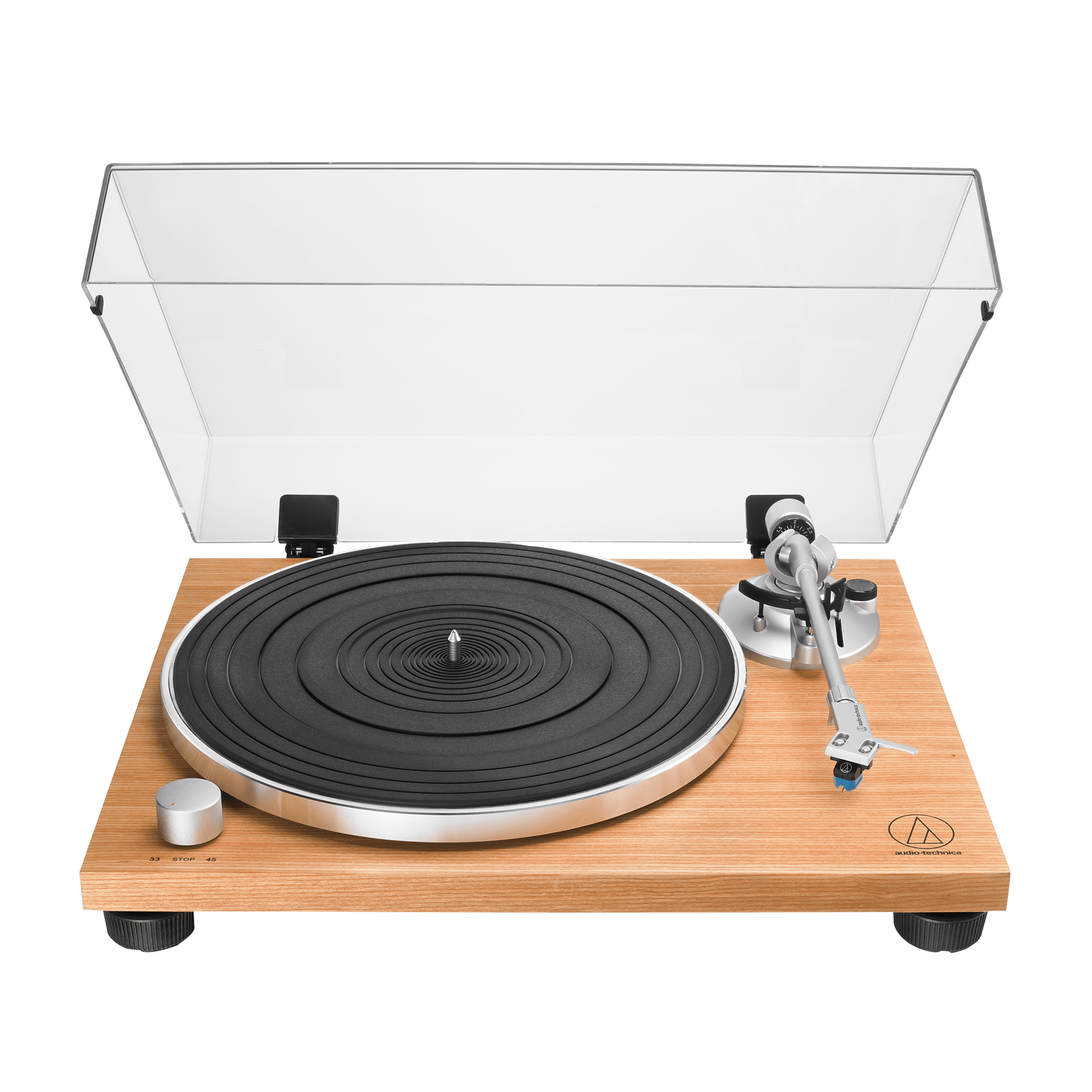

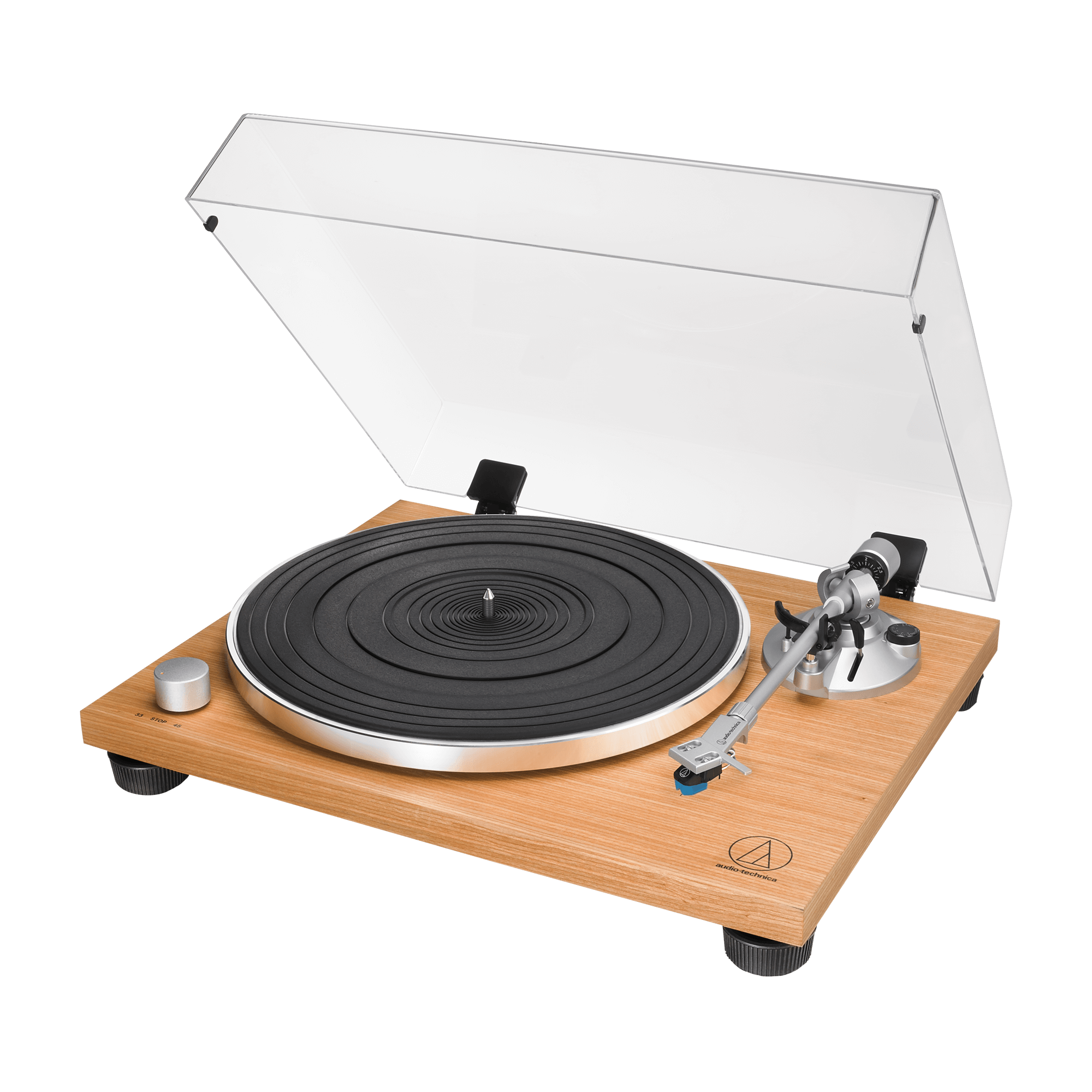

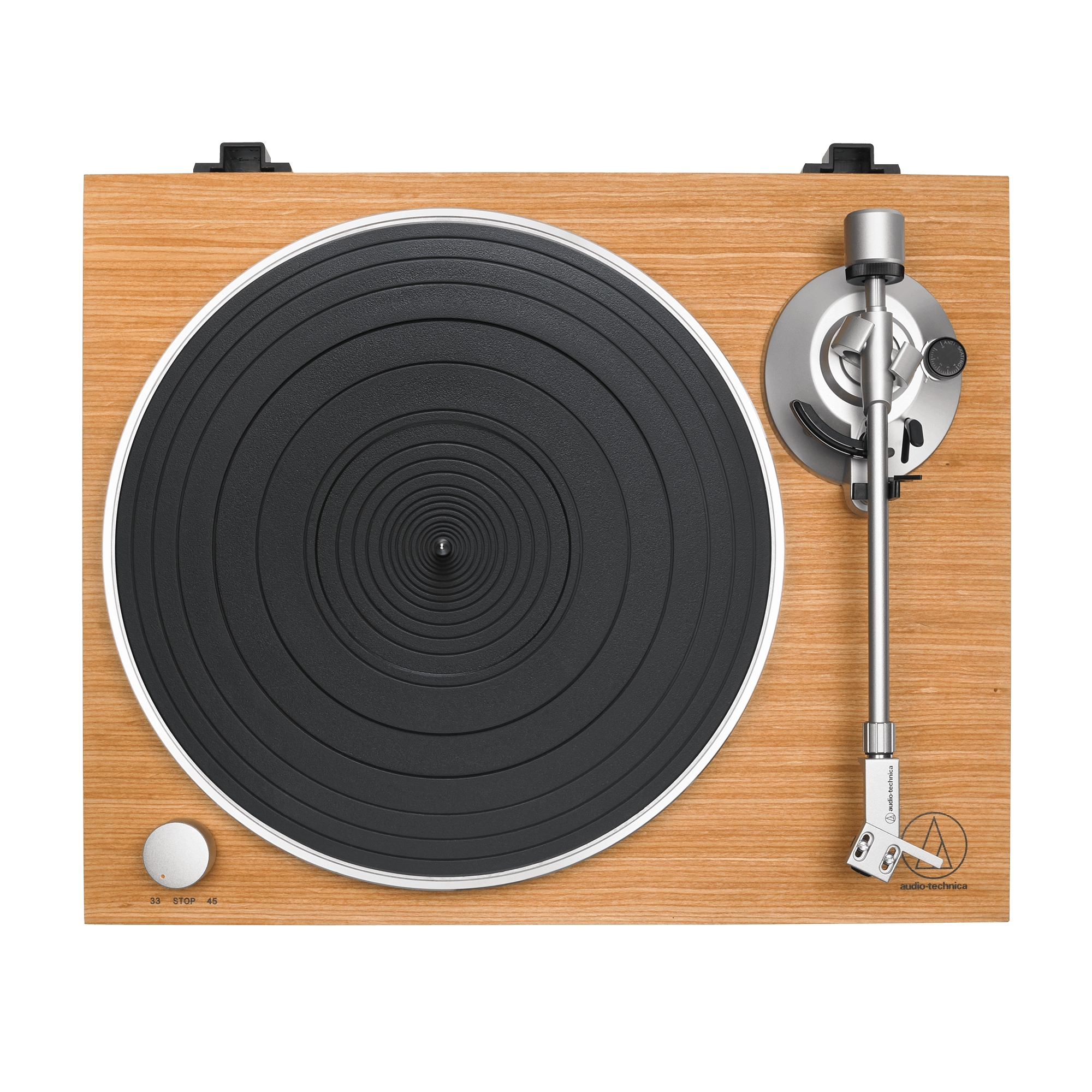

The AT-LPW30TK is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated teak veneer to limit low-frequency acoustical feedback.
The turntable includes a straight aluminum tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW30TK is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.
| Type | Belt-drive manual turntable |
| Motor | DC servo |
| Drive Method | Belt drive |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Die-cast aluminum |
| Wow and Flutter | < 0.15% WRMS (33 RPM) at 3 kHz |
| Signal-to-Noise Ratio | >60dB |
| Output Level | Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 35 dB nominal, RIAA equalized |
| Power Supply Requirements | 100-240V AC, 50/60 Hz, 0.5 A Max. |
| Power Consumption | 110 V 60 Hz
Working: 1.1 W
Motor off: 1.0 W
Power off: 0.1 W
|
| Dimensions | 420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H |
| Weight | 3.90 kg (8.60 lbs.) without dust cover |
| Accessories Included | Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95C stereo cartridge, 45-RPM adapter, RCA audio cable (approx.. 1.0 m (3.3’)), AC adapter (approx. 1.5 m (4.9’)) (AD-SA1205WE), Dust cover hinges |
